Name:
74LS158
Short description:
Quadruple 2-line to 1-line data selector/multiplexer with inverse outputs
Symbol:

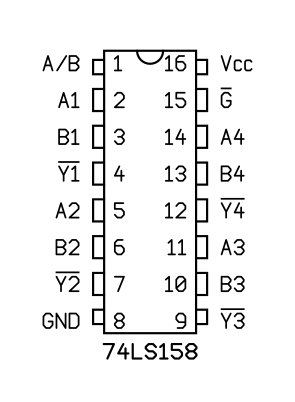

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16N (JEDEC MS-001, Variation AB)
Vendor
Part number / Specifications
Texas Instruments
SN74LS158
