Name:
74LS156
Short description:
Dual 2-line to 4-line decoder/demultiplexer with open collector outputs
Symbol:

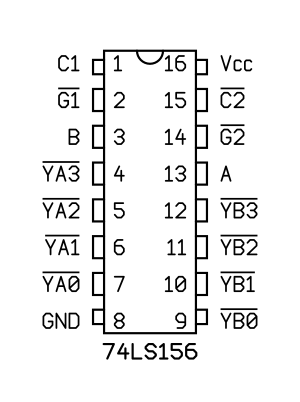

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16N (JEDEC MS-001, Variation AB)
Vendor
Part number / Specifications
Texas Instruments
SN74LS156N
