Name:74LS145
Short description:BCD-to-decimal decoder/driver

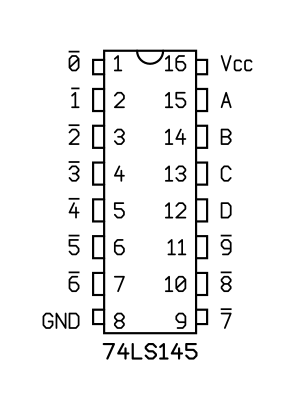

Symbol:

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74LS145N
