Name:74LS137
Short description:3-line to 8-line decoder/demultiplexer with address latch
Symbol:
Pinout: Default Style: GOST

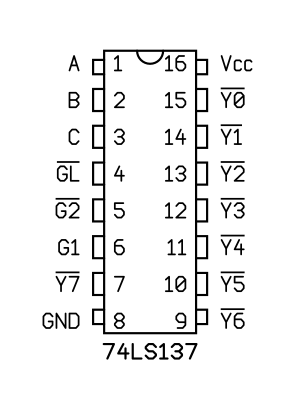

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
MotorolaSN74LS137N
