Name:74LS132
Short description:Quadruple 2-input positive-NAND Schmitt triggers

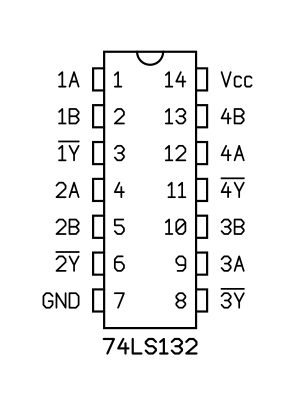

Symbol:

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74LS132
