Name:74LS122
Short description:Retriggerable monostable multivibrator
Symbol:
Pinout: Default Style: GOST

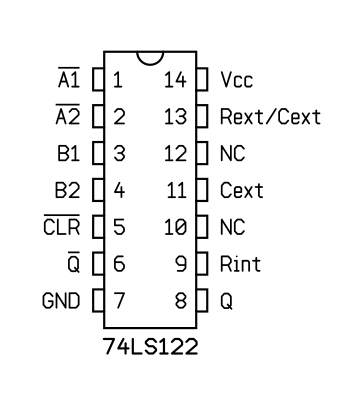

PDIP-14 (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS122N
