Name:74LS109
Short description:Dual J-K positive-edge-triggered flip-flop with preset and clear
Symbol:

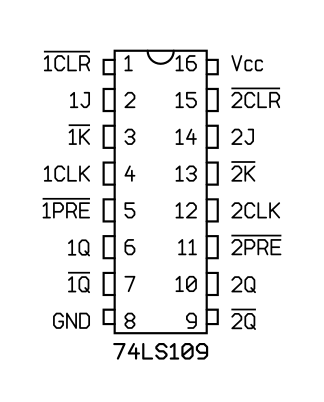

Pinout: Default Style: GOST

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS109AN
