Name:74LS49
Short description:BCD to 7-segment decoder with open collector outputs
Symbol:
Pinout: Default Style: GOST

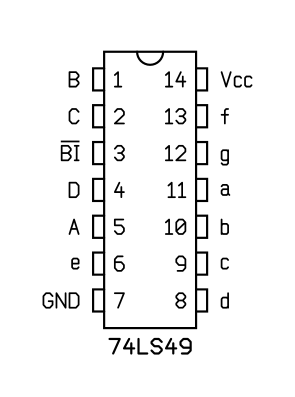

PDIP-14 (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS49N
