Name:
74LS15
Short description:
Triple 3-input AND gate with open-collector output
Symbol:

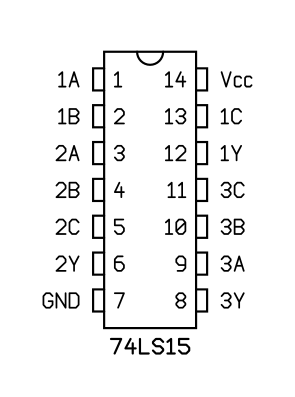

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-14N (JEDEC MS-001, Variation AA)
Vendor
Part number / Specifications
Motorola
SN74LS15N
Texas Instruments
SN74LS15N
