Name:74LS12
Short description:Triple 3-input NAND gate with open-collector output
Symbol:
Pinout: Default Style: GOST

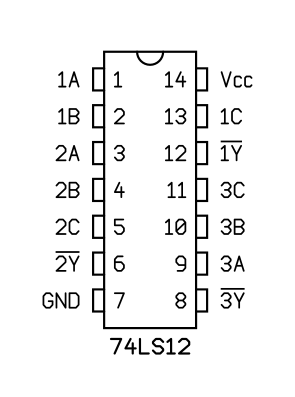

PDIP-14 (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
MotorolaSN74LS12N
Texas InstrumentsSN74LS12N
