Name:74LS11
Short description:Triple 3-input AND gate
Symbol:
Pinout: Default Style: GOST

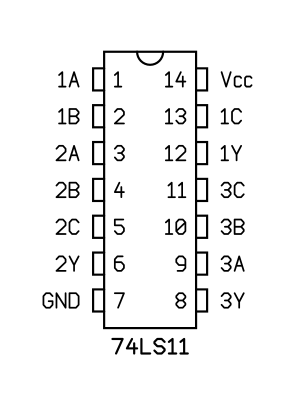

PDIP-14 (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS11N
