Name:74LS08
Short description:Quad 2-input AND gate
Symbol:

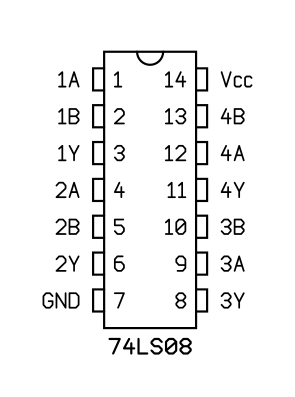

Pinout: Default Style: GOST

PDIP-14 (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS08N
