Name:74LS05
Short description:Hex inverter gate with open-collector output
Symbol:

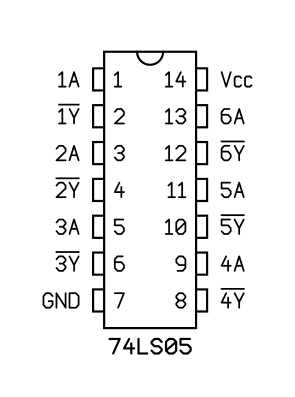

Pinout: Default Style: GOST

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74LS05N
