Name:74LS01
Short description:Quad 2-Input NAND gate with open-collector output
Symbol:

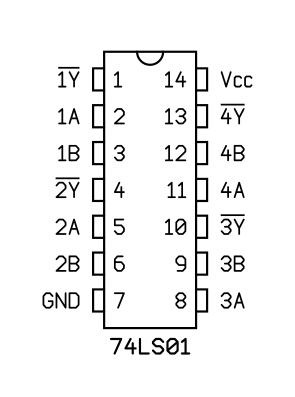

Pinout: Default Style: GOST

PDIP-14 (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS01N
