12 way terminal block
12 positions screw terminal block
Pinout:
Default
Style:
GOST
Variant:
Variant 1
STB-12
Manufacturer:
TE Connectivity
Part number:
1-282834-2
12 way terminal block

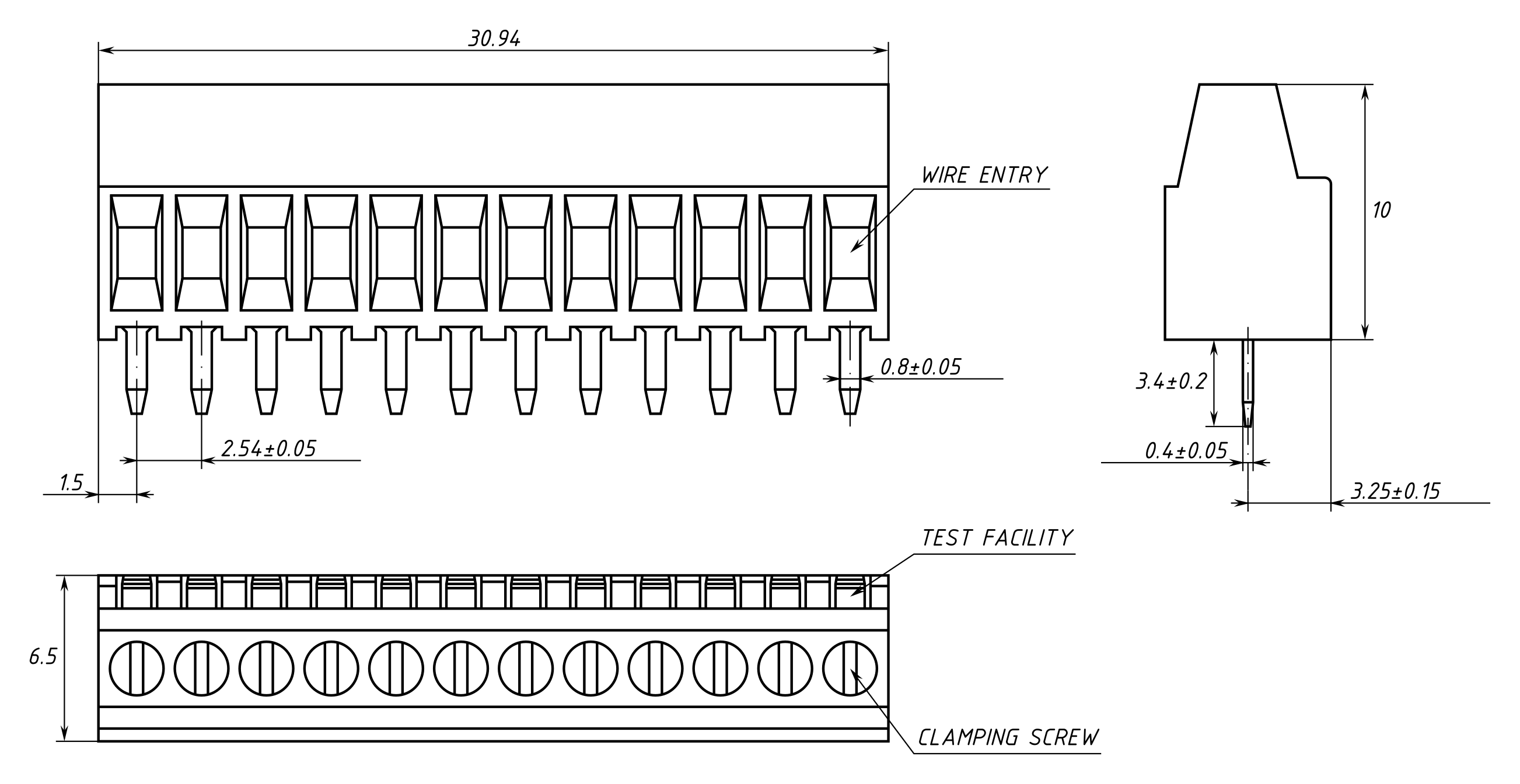

package diagram
