11 way terminal block
11 positions screw terminal block

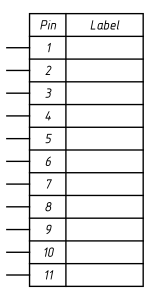

Pinout:
Default
Style:
GOST
Variant:
Variant 1
STB-11
Manufacturer:
TE Connectivity
Part number:
1-282834-1
11 way terminal block

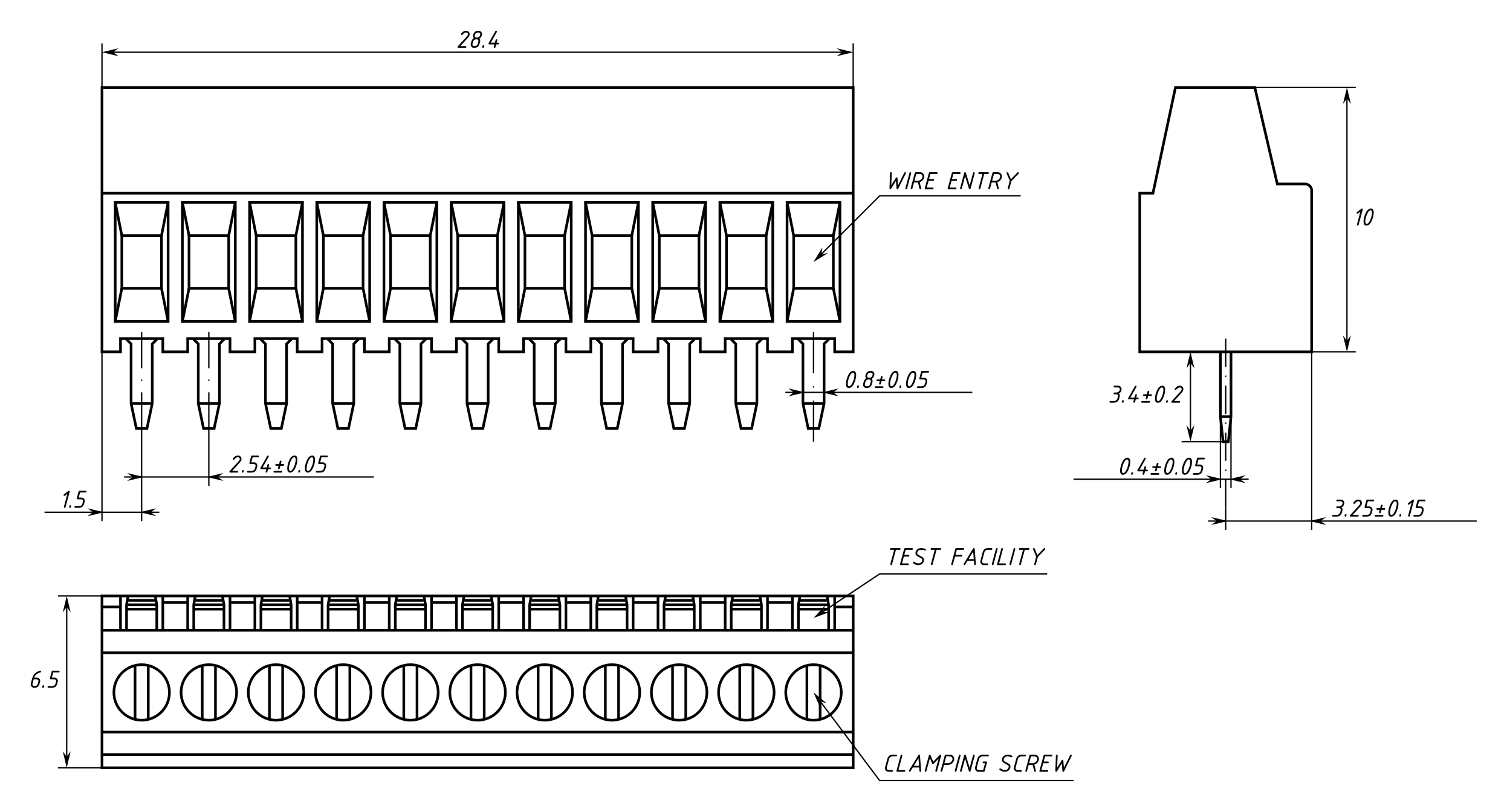

package diagram
