74S00
Quad 2-input NAND gate

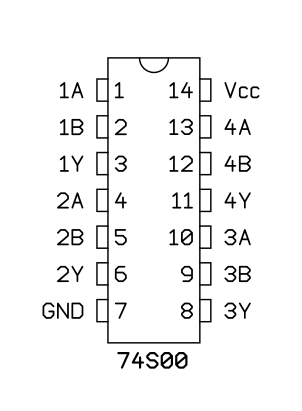

Pinout:
Default
Style:
GOST
ANSI
Variant:
Variant 1
PDIP-14
(JEDEC MS-001, Variation AA)

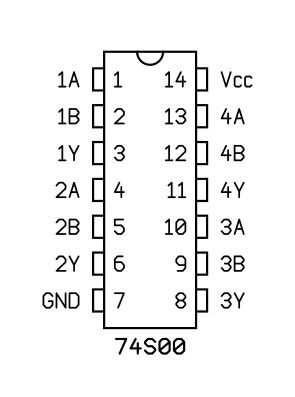

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74S00N
PDIP-14 (JEDEC MS-001, Variation AA)
package diagram
SOIC-14
(JEDEC MS-012, variation AB)
Manufacturer:
Texas Instruments
Part number:
SN74S00D
SOIC-14 (JEDEC MS-012, variation AB)
package diagram
SOP-14
(EIAJ-7320, 300mil)
Manufacturer:
Texas Instruments
Part number:
SN74S00NS
SOP-14 (EIAJ-7320, 300mil)
package diagram
