4000
Dual 3-input NOR gate plus inverter gate

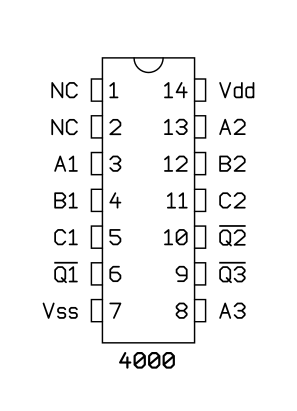

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-14
(JEDEC MS-001, Variation AA)

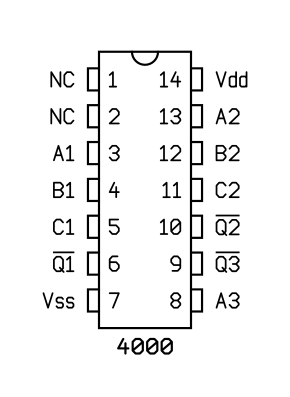

Pinout
Manufacturer:
RCA
Part number:
CD4000BE
PDIP-14 (JEDEC MS-001, Variation AA)
package diagram
CDIP-14
(JEDEC MS-030, Variation AB)
Manufacturer:
RCA
Part number:
CD4000BF
CDIP-14 (JEDEC MS-030, Variation AB)
package diagram
