Name:74LS797
Short description:Octal buffer with 3-state outputs
Symbol:

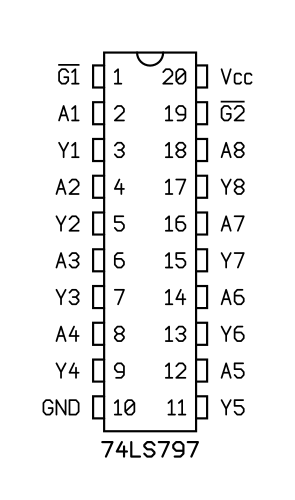

Pinout: Default Style: GOST

PDIP-20N (JEDEC MS-001, Variation AD)

VendorPart number / Specifications
MotorolaSN74LS797N
