Name:74LS796
Short description:Octal inverting buffer with 3-state outputs
Symbol:

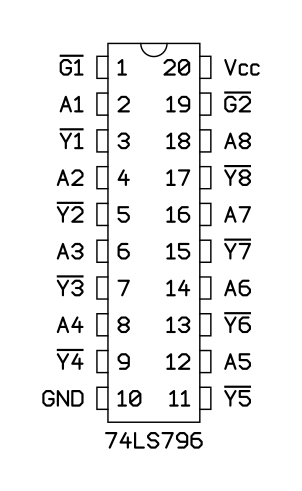

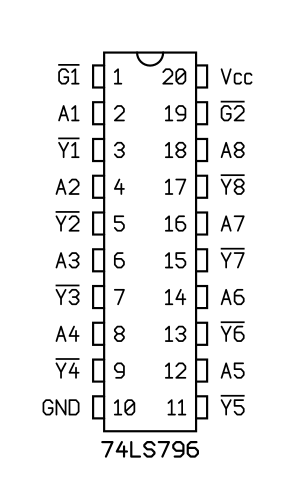

Pinout: Default Style: GOST

PDIP-20N (JEDEC MS-001, Variation AD)

VendorPart number / Specifications
MotorolaSN74LS796N
