Name:74LS697
Short description:Synchronous binary up/down counter with output register and multiplexed 3-state outputs
Symbol:
Pinout: Default Style: GOST

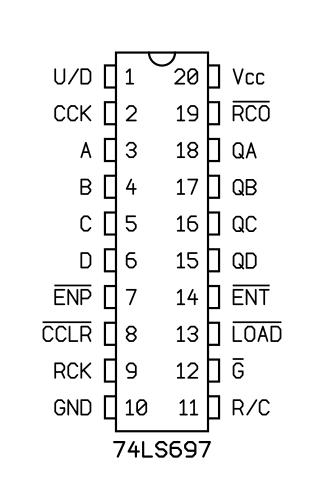

PDIP-20 (JEDEC MS-001, Variation AD) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS697N
