Name:74LS692
Short description:Synchronous decade counter with output register and multiplexed 3-state outputs
Symbol:
Pinout: Default Style: GOST

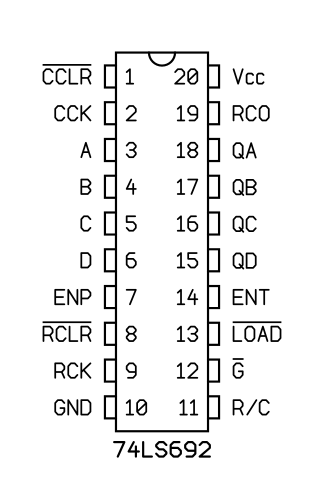

PDIP-20 (JEDEC MS-001, Variation AD) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS692N
