Name:74LS674
Short description:16-bit parallel-in, serial-out shift register
Symbol:
Pinout: Default Style: GOST

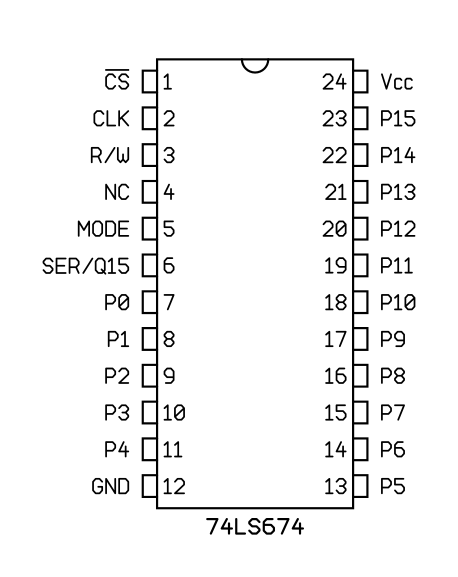

PDIP-24W (JEDEC MS-011, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS674N
