Name:74LS649
Short description:Octal inverting bus transceiver and register with open collector outputs
Symbol:

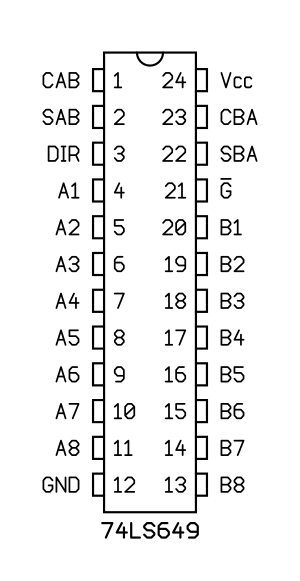

Pinout: Default Style: GOST

PDIP-24N (JEDEC MS-001, Variation AF) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS649NT
