ATmega8535L
8-bit AVR Microcontroller

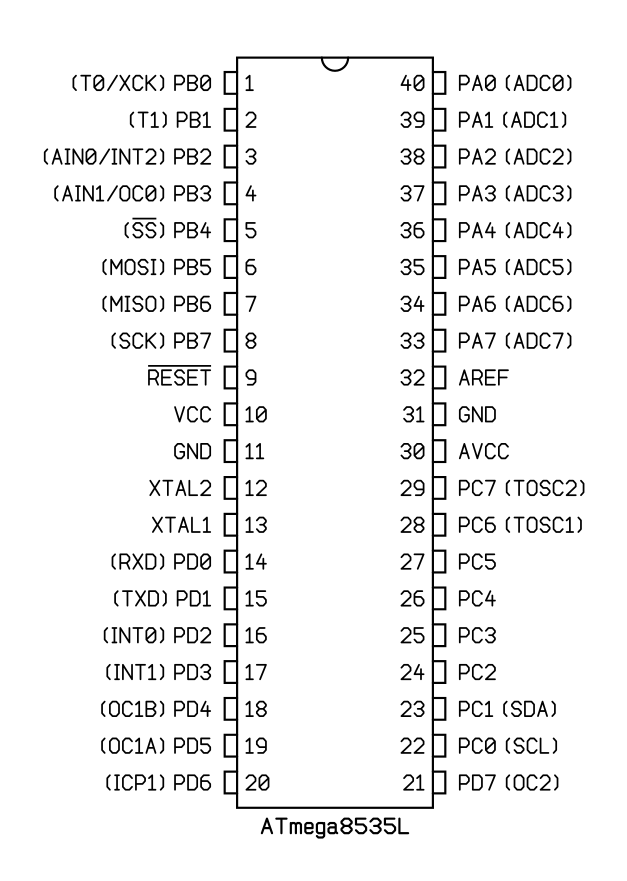

Pinout:
Default
PDIP-40
Style:
GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)
Pinout
Manufacturer:
Atmel
Part number:
ATmega8535L-8PC
Manufacturer:
Atmel
Part number:
ATmega8535L-8PI
Manufacturer:
Atmel
Part number:
ATmega8535L-8PU
PDIP-40 (JEDEC MS-011, Variation AC)
package diagram
TQFP-44
(JEDEC MS-026-ACB)
Pinout
Manufacturer:
Atmel
Part number:
ATmega8535L-8AC
Manufacturer:
Atmel
Part number:
ATmega8535L-8AI
Manufacturer:
Atmel
Part number:
ATmega8535L-8AU
TQFP-44 (JEDEC MS-026-ACB)
package diagram
