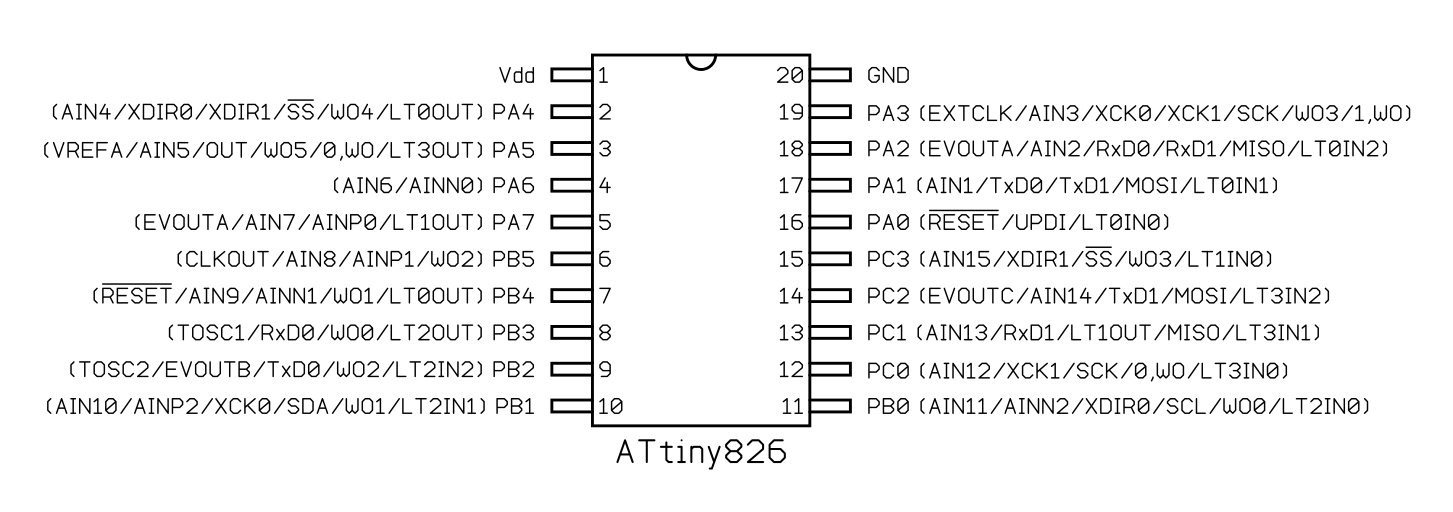

ATtiny826
8-bit AVR Microcontroller
Pinout:
Default
Style:
GOST
Variant:
Variant 1
SOP-20
(JEDEC MS-013, Variation AC)
Manufacturer:
Microchip
Part number:
ATTINY826-SF
Manufacturer:
Microchip
Part number:
ATTINY826-SFR
Manufacturer:
Microchip
Part number:
ATTINY826-SU
Manufacturer:
Microchip
Part number:
ATTINY826-SUR
More
Less
SOP-20 (JEDEC MS-013, Variation AC)
package diagram
SSOP-20
(JEDEC MO-150, variation AE)
Manufacturer:
Microchip
Part number:
ATTINY826-XF
Manufacturer:
Microchip
Part number:
ATTINY826-XFR
Manufacturer:
Microchip
Part number:
ATTINY826-XU
Manufacturer:
Microchip
Part number:
ATTINY826-XUR
More
Less
SSOP-20 (JEDEC MO-150, variation AE)
package diagram
