Category:
Name:ATtiny816
Short description:8-bit AVR Microcontroller
Symbol:

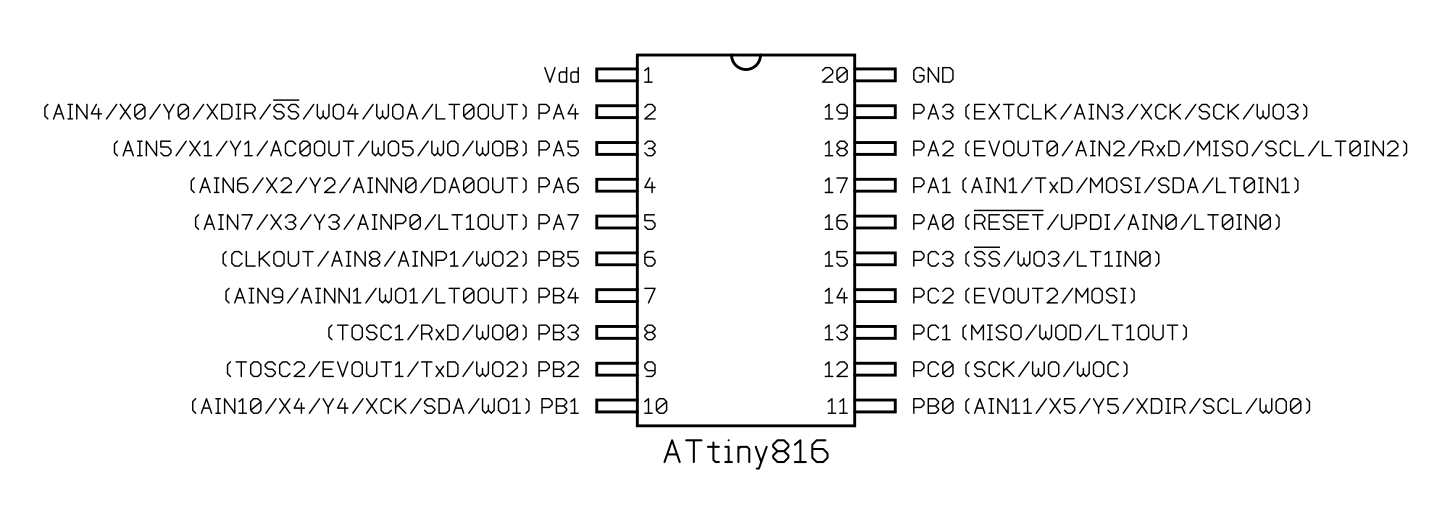

Pinout: Default Style: GOST

SOP-20 (JEDEC MS-013, Variation AC)

VendorPart number / Specifications
MicrochipATtiny816-SF
MicrochipATtiny816-SFR
MicrochipATtiny816-SN
MicrochipATtiny816-SNR
