8-bit input/output port
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-24
(JEDEC MS-011, Variation AA)

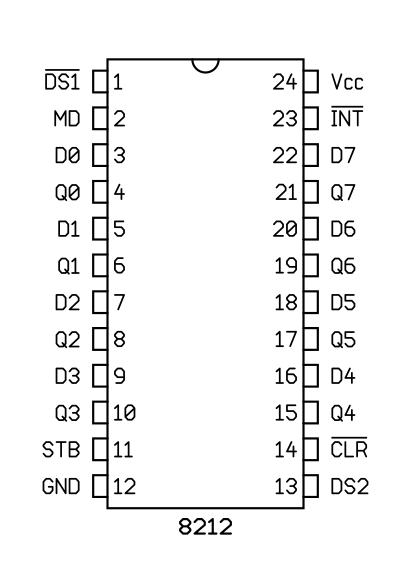

Pinout
Manufacturer:
Siemens
Part number:
SAB8212P
PDIP-24W (JEDEC MS-011, Variation AA)
package diagram
