ATtiny40
8-bit AVR Microcontroller

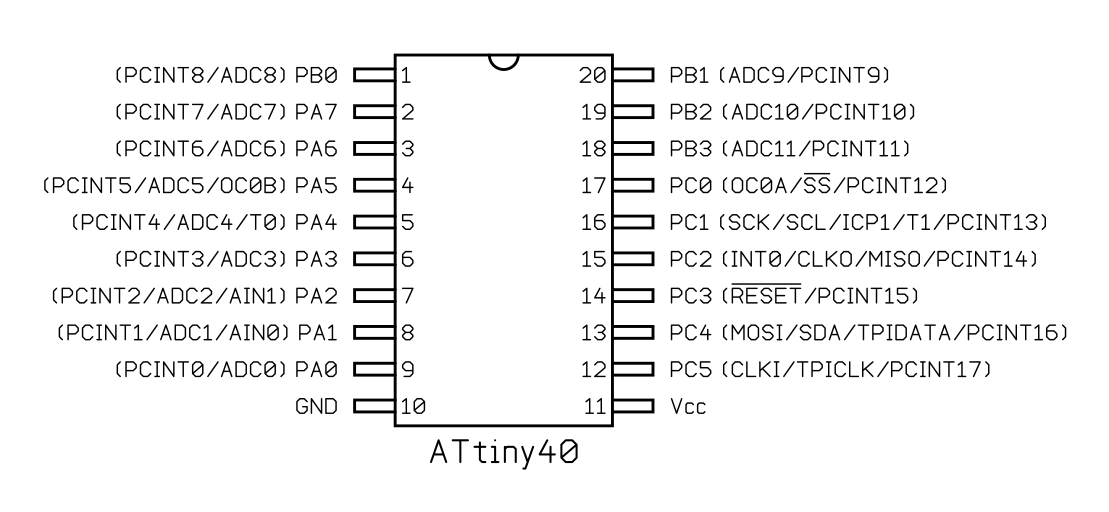

Pinout:
Default
Style:
GOST
Variant:
Variant 1
SOP-20
(JEDEC MS-013, Variation AC)
Manufacturer:
Atmel
Part number:
ATtiny40-SU
Manufacturer:
Atmel
Part number:
ATtiny40-SUR
SOP-20 (JEDEC MS-013, Variation AC)
package diagram
TSSOP-20
(JEDEC MO-153)
Manufacturer:
Atmel
Part number:
ATtiny40-XU
Manufacturer:
Atmel
Part number:
ATtiny40-XUR
TSSOP-20 (JEDEC MO-153)
package diagram
