ATtiny2313A
8-bit AVR Microcontroller
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-20
(JEDEC MS-001, Variation AD)

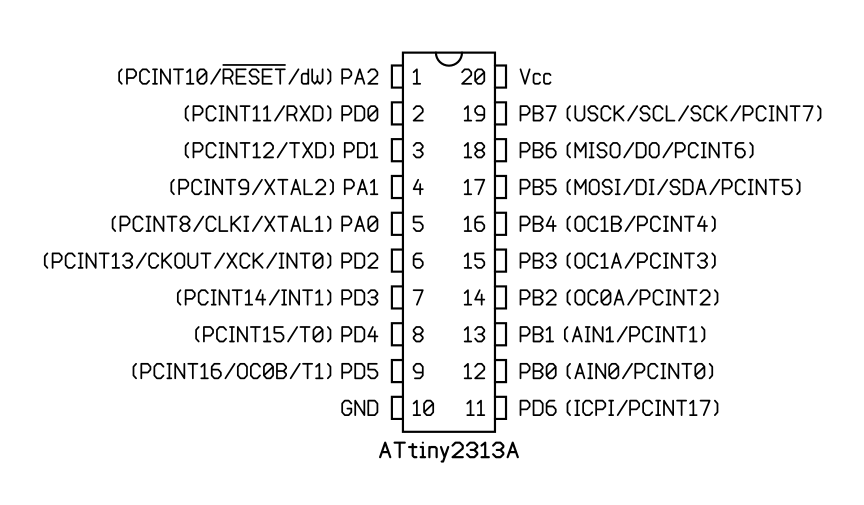

Pinout
Manufacturer:
Atmel
Part number:
ATtiny2313A-PU
PDIP-20 (JEDEC MS-001, Variation AD)

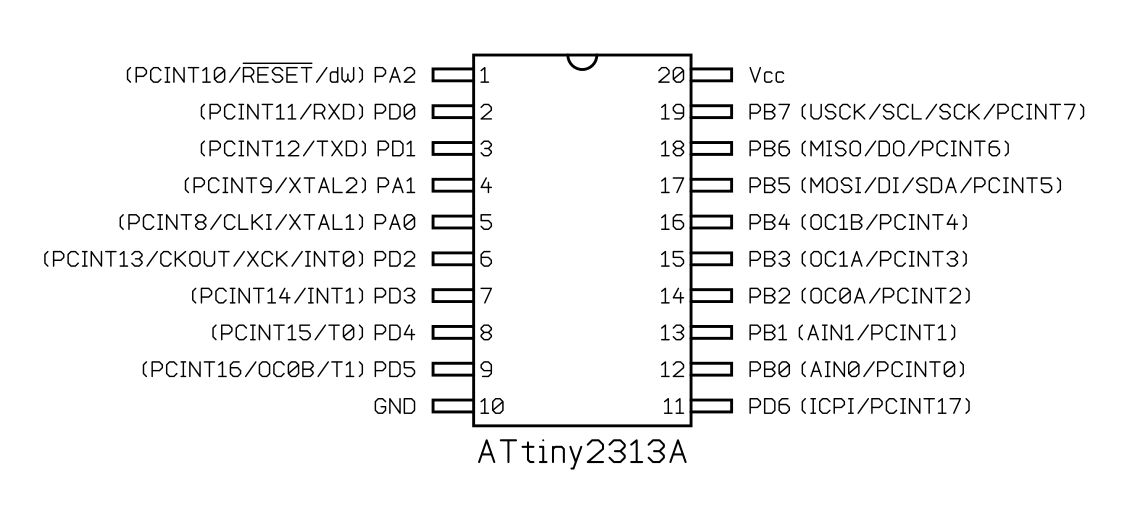

package diagram
SOP-20
(JEDEC MS-013, Variation AC)
Manufacturer:
Atmel
Part number:
ATtiny2313A-SU
Manufacturer:
Atmel
Part number:
ATtiny2313A-SUR
SOP-20 (JEDEC MS-013, Variation AC)
package diagram
