ATtiny2313
8-bit AVR Microcontroller
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-20
(JEDEC MS-001, Variation AD)

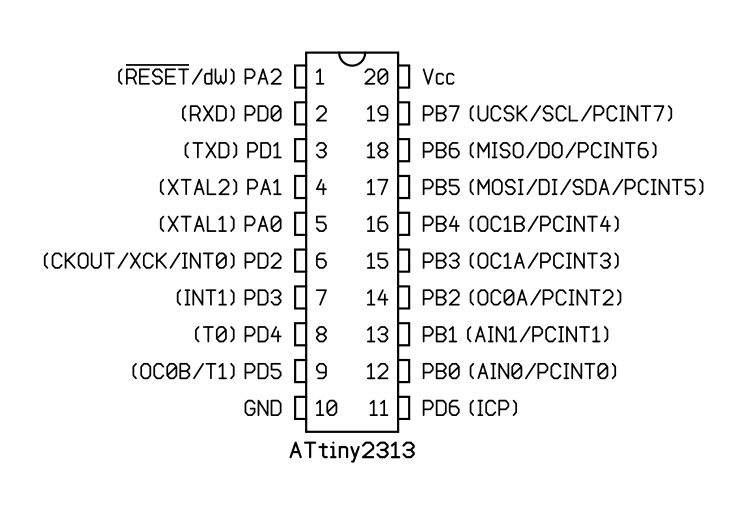

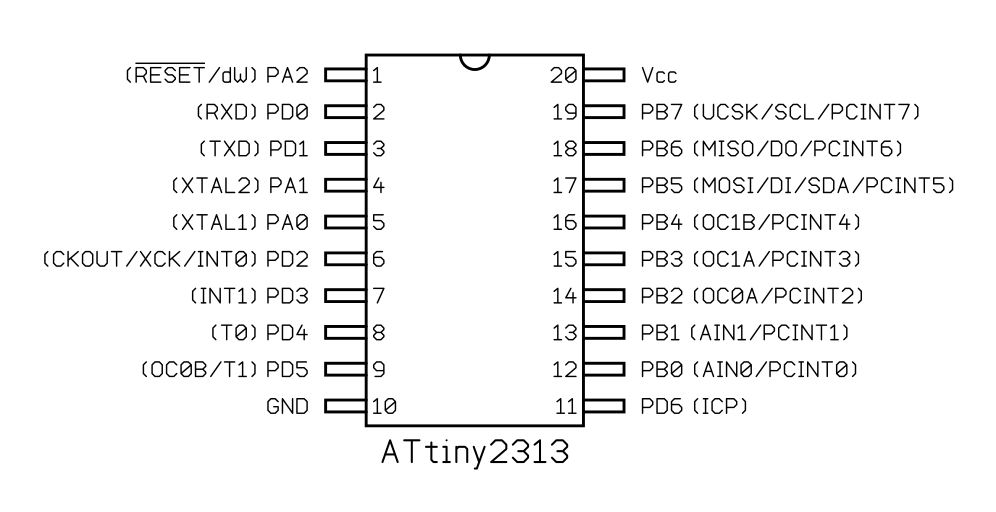

Pinout
Manufacturer:
Atmel
Part number:
ATtiny2313-20PU
Manufacturer:
Atmel
Part number:
ATtiny2313V-10PU
PDIP-20 (JEDEC MS-001, Variation AD)
package diagram
SOP-20
(JEDEC MS-013, Variation AC)
Manufacturer:
Atmel
Part number:
ATtiny2313-20SU
Manufacturer:
Atmel
Part number:
ATtiny2313-20SUR
Manufacturer:
Atmel
Part number:
ATtiny2313V-10SU
Manufacturer:
Atmel
Part number:
ATtiny2313V-10SUR
More
Less
SOP-20 (JEDEC MS-013, Variation AC)
package diagram
