ATtiny461
8-bit AVR Microcontroller

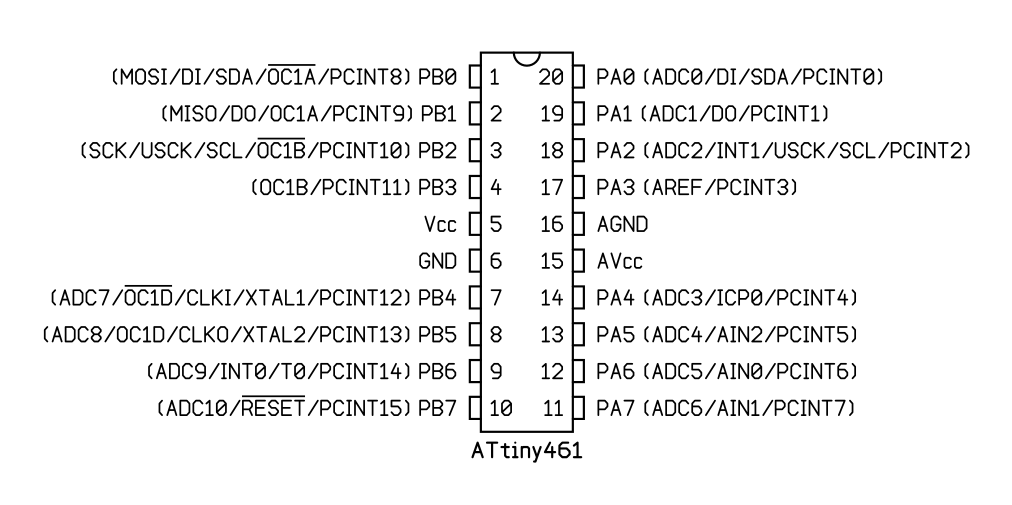

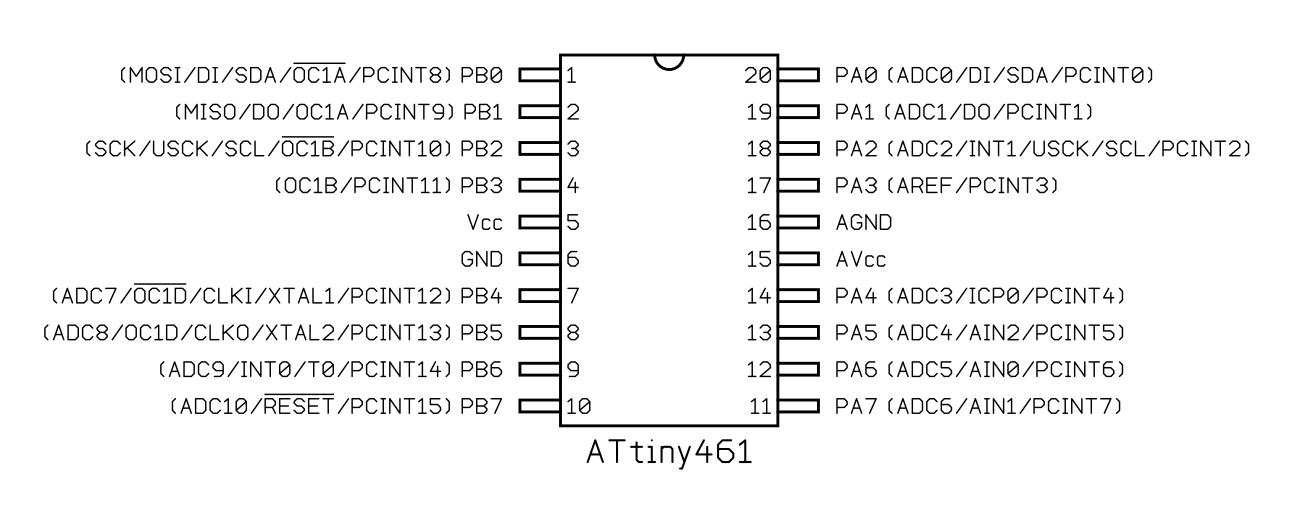

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-20
(JEDEC MS-001, Variation AD)
Pinout
Manufacturer:
Atmel
Part number:
ATtiny461A-PU
PDIP-20 (JEDEC MS-001, Variation AD)
package diagram
SOP-20
(JEDEC MS-013, Variation AC)
Manufacturer:
Atmel
Part number:
ATtiny461-15SZ
Manufacturer:
Atmel
Part number:
ATtiny461A-SU
Manufacturer:
Atmel
Part number:
ATtiny461A-SUR
SOP-20 (JEDEC MS-013, Variation AC)
package diagram
TSSOP-20
(JEDEC MO-153)
Manufacturer:
Atmel
Part number:
ATtiny461-15XZ
Manufacturer:
Atmel
Part number:
ATtiny461A-XU
Manufacturer:
Atmel
Part number:
ATtiny461A-XUR
TSSOP-20 (JEDEC MO-153)
package diagram
