Category:
Name:ATtiny167
Short description:8-bit AVR Microcontroller
Symbol:

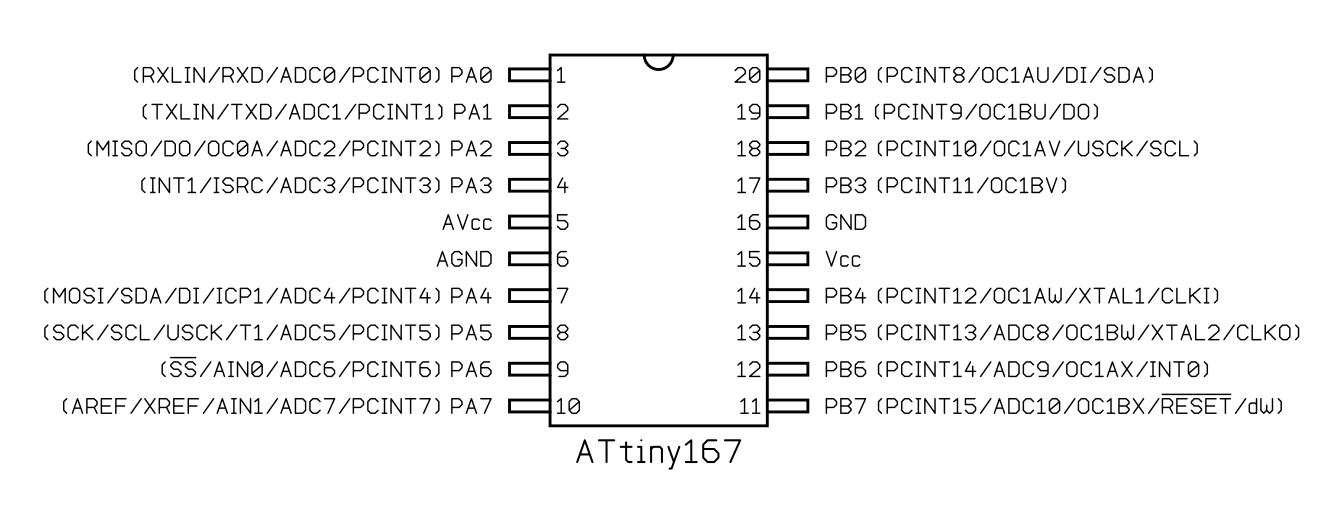

Pinout: Default Style: GOST

SOP-20 (JEDEC MS-013, Variation AC)

VendorPart number / Specifications
MicrochipATtiny167-SU
MicrochipATtiny167-SUR

TSSOP-20 (JEDEC MO-153)

VendorPart number / Specifications
MicrochipATtiny167-XU
MicrochipATtiny167-XUR
