ATtiny84
8-bit AVR Microcontroller

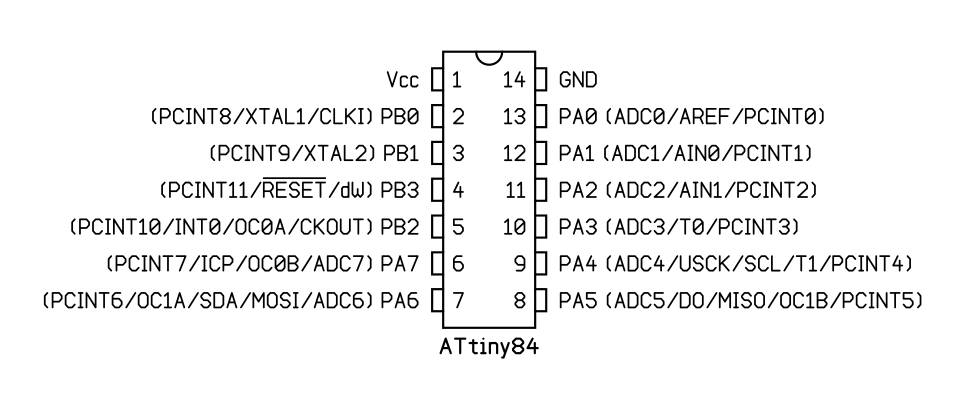

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-14
(JEDEC MS-001, Variation AA)
Pinout
Manufacturer:
Atmel
Part number:
ATtiny84-20PU
Manufacturer:
Microchip
Part number:
ATtiny84A-PU
Manufacturer:
Atmel
Part number:
ATtiny84V-10PU
PDIP-14 (JEDEC MS-001, Variation AA)
package diagram
SOIC-14
(JEDEC MS-012, variation AB)
Manufacturer:
Atmel
Part number:
ATtiny84-20SSU
Manufacturer:
Atmel
Part number:
ATtiny84-20SSUR
Manufacturer:
Microchip
Part number:
ATtiny84A-SSF
Manufacturer:
Microchip
Part number:
ATtiny84A-SSFR
Manufacturer:
Microchip
Part number:
ATtiny84A-SSU
Manufacturer:
Microchip
Part number:
ATtiny84A-SSUR
Manufacturer:
Atmel
Part number:
ATtiny84V-10SSU
Manufacturer:
Atmel
Part number:
ATtiny84V-10SSUR
More
Less
SOIC-14 (JEDEC MS-012, variation AB)
package diagram
