ATtiny15
8-bit AVR Microcontroller

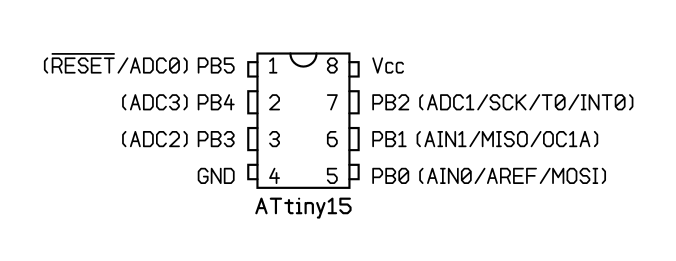

Pinout:
Default
Style:
GOST
Variant:
Variant 1
Variant: 2
PDIP-8
(JEDEC MS-001, Variation BA)
Pinout
Manufacturer:
Atmel
Part number:
ATtiny15L-1PC
Manufacturer:
Atmel
Part number:
ATtiny15L-1PI
Manufacturer:
Atmel
Part number:
ATtiny15L-1PU
PDIP-8 (JEDEC MS-001, Variation BA)
package diagram
SOP-8
(EIAJ)
Manufacturer:
Atmel
Part number:
ATtiny15L-1SC
Manufacturer:
Atmel
Part number:
ATtiny15L-1SI
Manufacturer:
Atmel
Part number:
ATtiny15L-1SU
SOP-8 (EIAJ)
package diagram
