ATmega164P
8-bit AVR microcontroller
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)

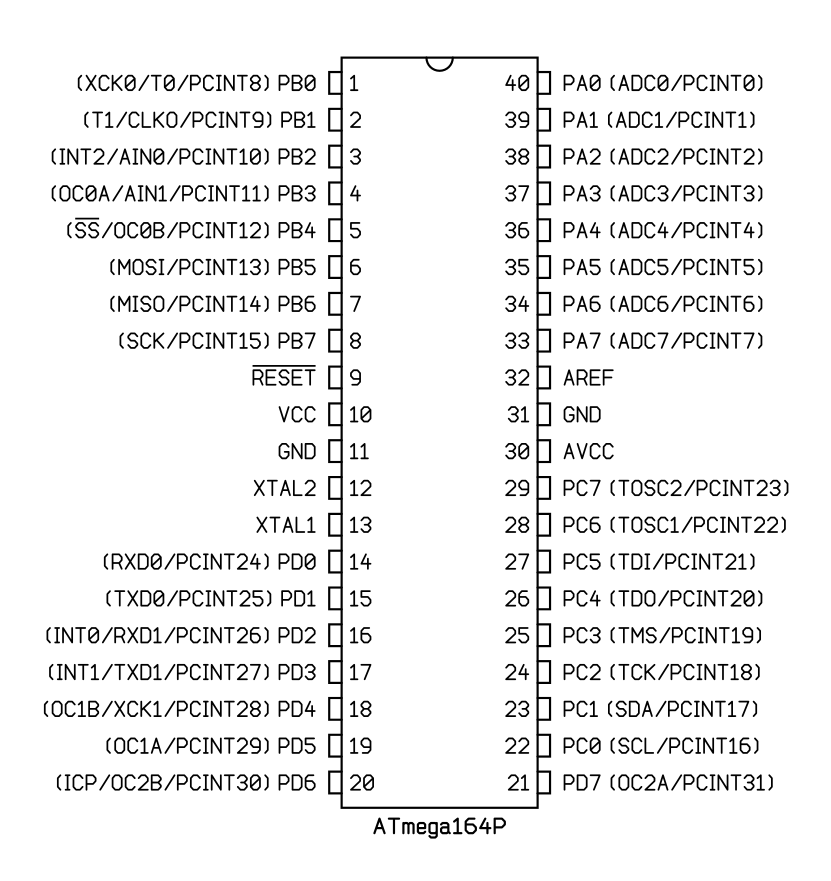

Pinout
Manufacturer:
Microchip
Part number:
ATmega164P-20PN
Manufacturer:
Microchip
Part number:
ATmega164P-20PU
PDIP-40 (JEDEC MS-011, Variation AC)
package diagram
