Name:ATmega1284
Short description:8-bit AVR microcontroller
Symbol:
Pinout: Default Style: GOST

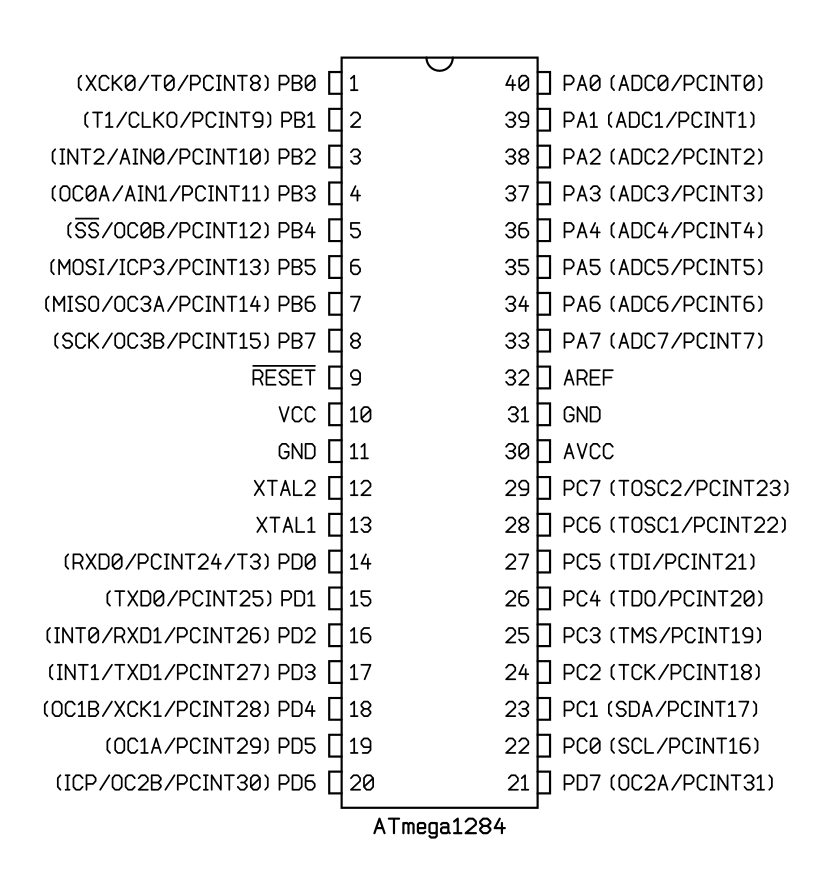

PDIP-40 (JEDEC MS-011, Variation AC) [Pinout]

VendorPart number / Specifications
AtmelATmega1284-PU
