ATmega644A
8-bit AVR microcontroller
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)
Pinout
Manufacturer:
Atmel
Part number:
ATmega644A-PU
PDIP-40 (JEDEC MS-011, Variation AC)

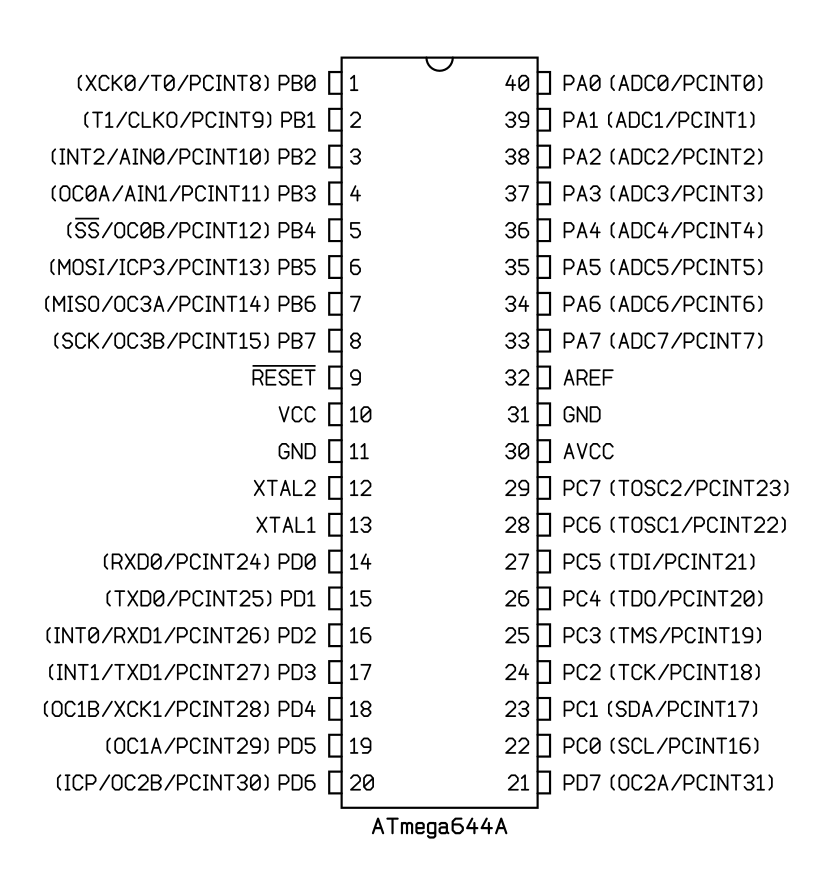

package diagram
