ATmega8
8-bit AVR microcontroller
Pinout:
Default
VQFN-32
TQFP-32
Style:
GOST
Variant:
Variant 1
PDIP-28
(JEDEC MS-001, Variation BF)

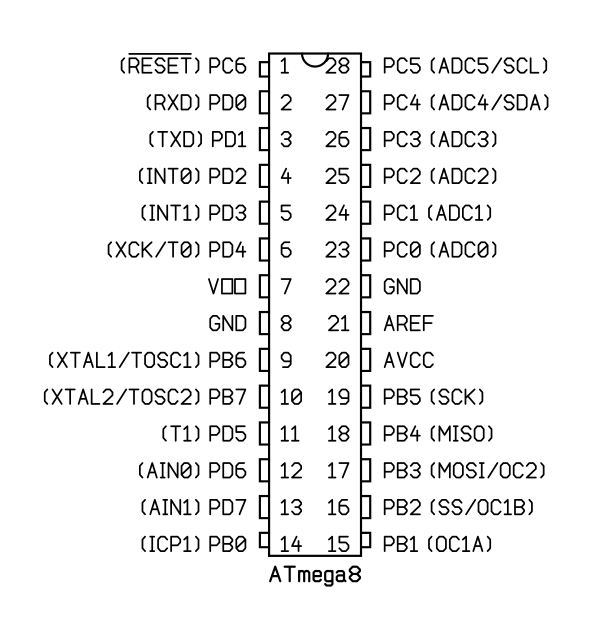

Pinout
Manufacturer:
Atmel
Part number:
ATmega8-16PN
Manufacturer:
Atmel
Part number:
ATmega8-16PU
PDIP-28N (JEDEC MS-001, Variation BF)
package diagram
TQFP-32
(JEDEC MS-026-ABA)
Pinout
Manufacturer:
Atmel
Part number:
ATmega8-16AN
Manufacturer:
Atmel
Part number:
ATmega8-16ANR
Manufacturer:
Atmel
Part number:
ATmega8-16AU
Manufacturer:
Atmel
Part number:
ATmega8-16AUR
More
Less
TQFP-32 (JEDEC MS-026-ABA)
package diagram
VQFN-32
(JEDEC MO-220, VHHD-2, T2)
Manufacturer:
Atmel
Part number:
ATmega8-16MN
Manufacturer:
Atmel
Part number:
Atmega8-16MNR
Manufacturer:
Atmel
Part number:
ATmega8-16MU
Manufacturer:
Atmel
Part number:
ATmega8-16MUR
More
Less
VQFN-32 (JEDEC MO-220, VHHD-2, T2)
package diagram
