8-bit AVR microcontroller
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-28
(JEDEC MS-001, Variation BF)

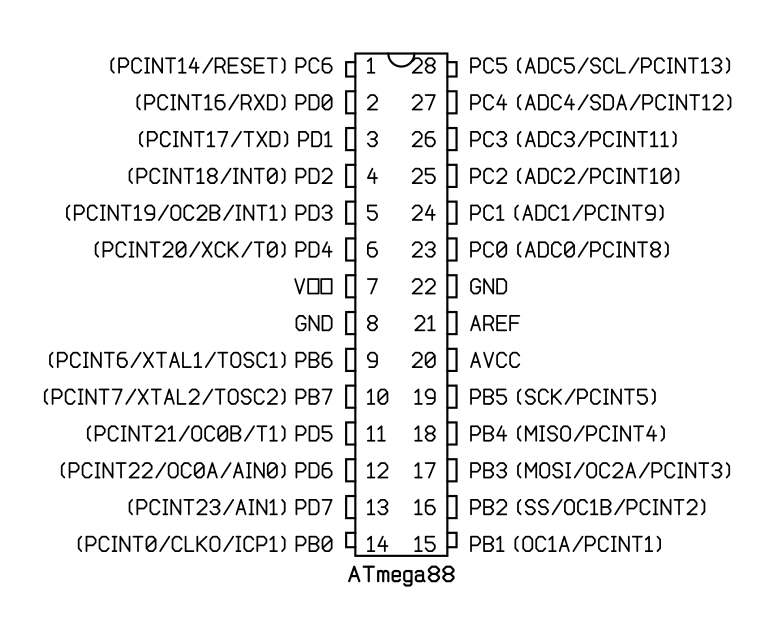

Pinout
Manufacturer:
Atmel
Part number:
ATmega88-20PU
PDIP-28N (JEDEC MS-001, Variation BF)
package diagram
