TM1637
LED Drive Control Special Circuit
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-20
(JEDEC MS-001, Variation AD)

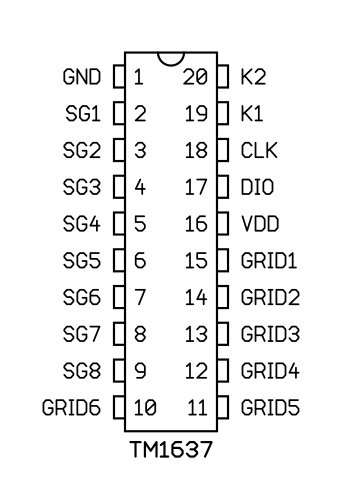

Pinout
Manufacturer:
Titan Micro Electronics
Part number:
TM1637
PDIP-20 (JEDEC MS-001, Variation AD)
package diagram
SOP-20
(JEDEC MS-013, Variation AC)
Manufacturer:
Titan Micro Electronics
Part number:
TM1637
SOP-20 (JEDEC MS-013, Variation AC)
package diagram
