DS1307
64 x 8 Serial Real-Time Clock

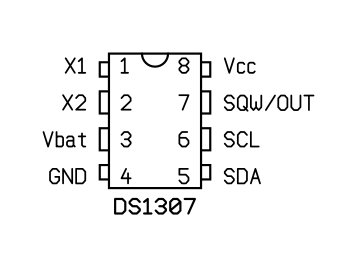

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-8
(JEDEC MS-001, Variation BA)
Pinout
Manufacturer:
Analog Devices
Part number:
DS1307+
Manufacturer:
Analog Devices
Part number:
DS1307N+
PDIP-8 (JEDEC MS-001, Variation BA)
package diagram
SOIC-8
(JEDEC MS-012-AA)
Pinout
Manufacturer:
Analog Devices
Part number:
DS1307Z+
Manufacturer:
Analog Devices
Part number:
DS1307Z+T&R
Manufacturer:
Analog Devices
Part number:
DS1307ZN+
Manufacturer:
Analog Devices
Part number:
DS1307ZN+T&R
More
Less
SOIC-8 (JEDEC MS-012-AA)
package diagram
