Pin header 3x1, 1.27mm
Single row 3-pin pin header, 1.27 mm pitch
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PHC3x1
Manufacturer:
Amphenol
Part number:
G8020031106YEU
Pin header connector 3x1

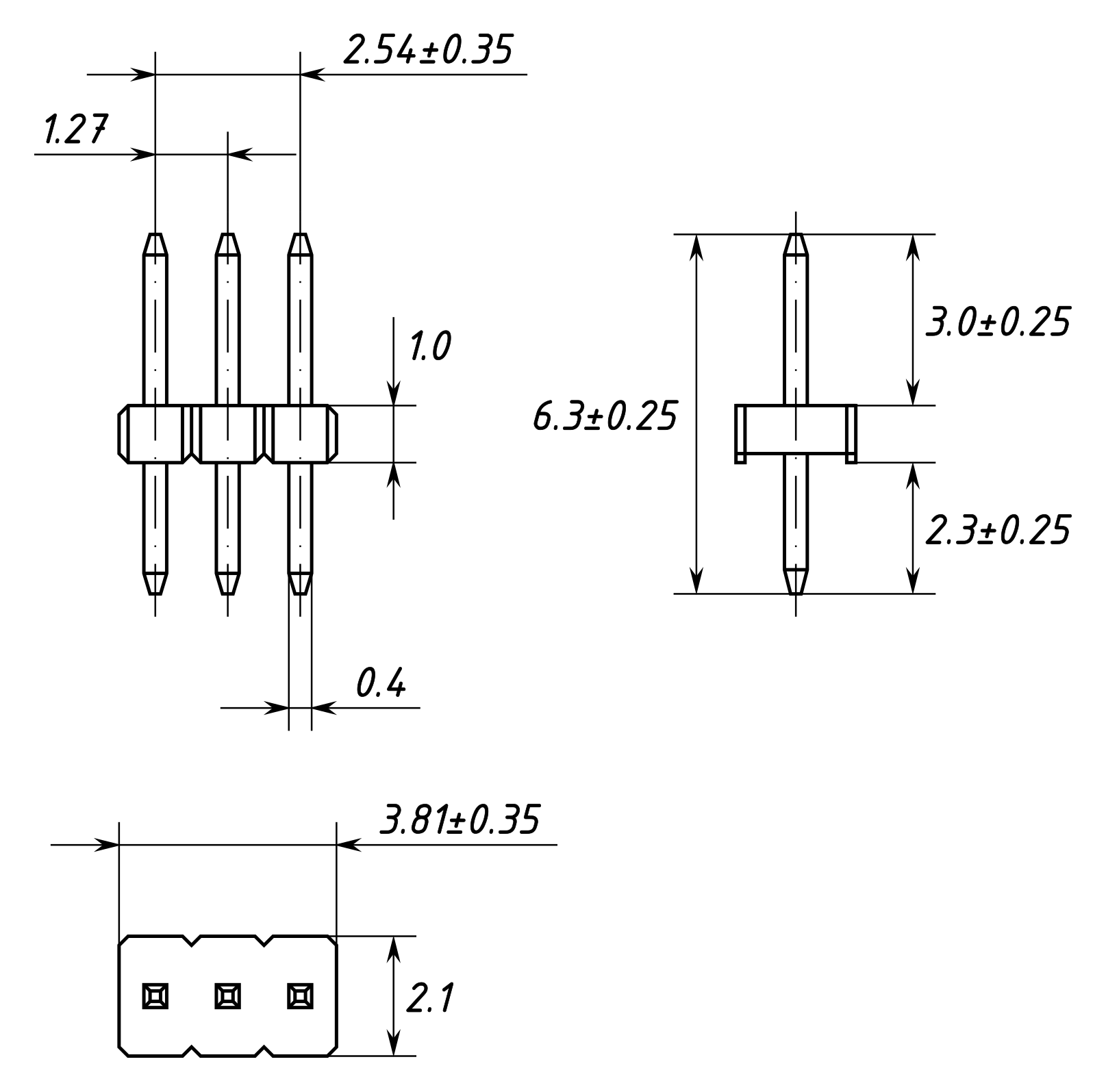

package diagram
PHCRA3x1
Manufacturer:
Harwin
Part number:
M50-3930342

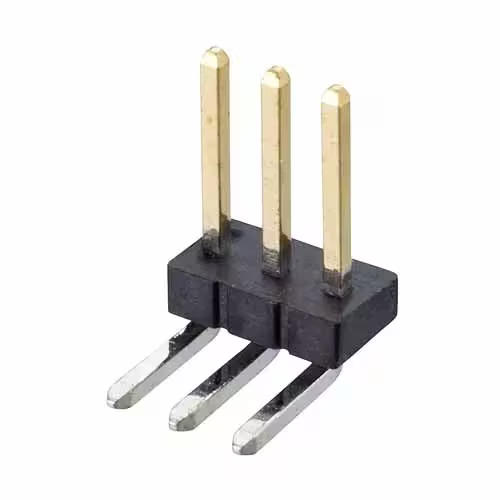

Right angle pin header 3x1

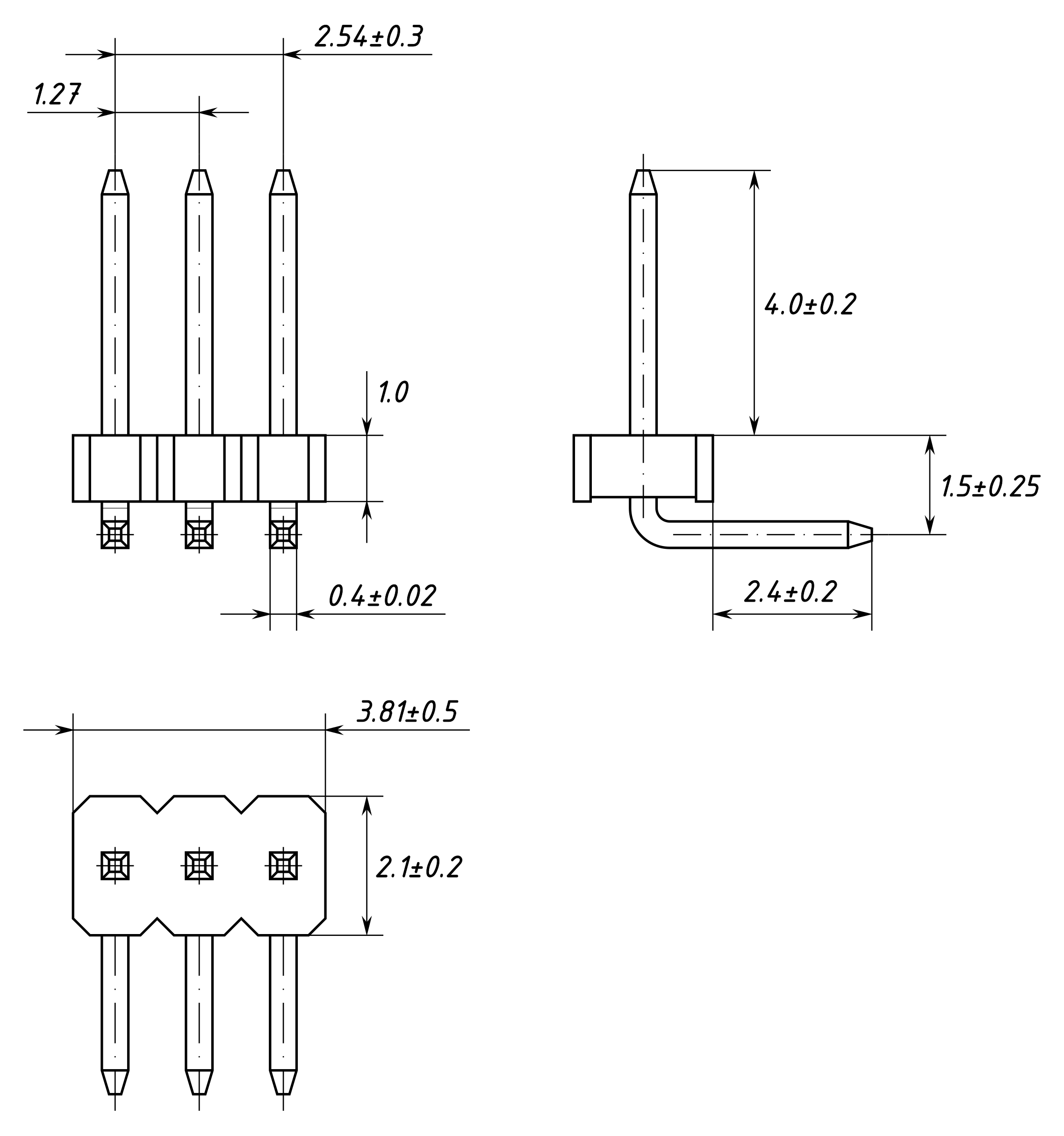

package diagram
