8828
System controller and bus driver for 8080A CPU
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-28
(JEDEC MS-011, Variation AB)
Pinout
Manufacturer:
Intel
Part number:
P8828
PDIP-28W (JEDEC MS-011, Variation AB)

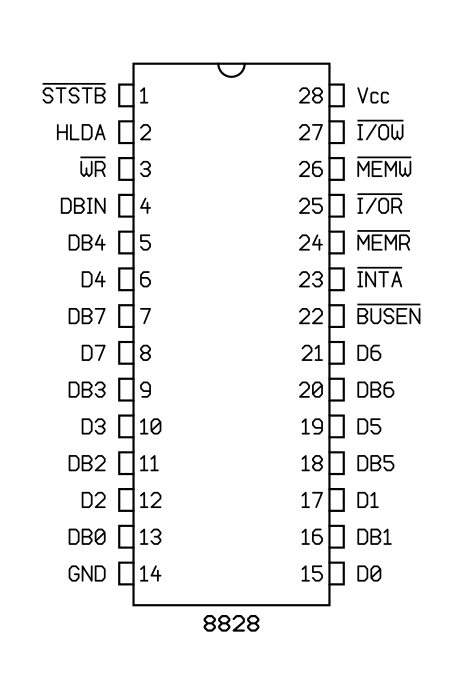

package diagram
