W65C51N
Asynchronous communication interface adapter
Pinout:
PDIP-28
LQFP-32
Style:
GOST
Variant:
Variant 1

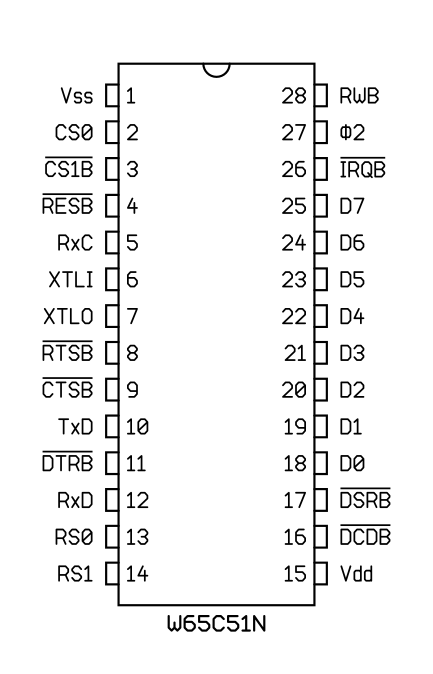

PDIP-28
(JEDEC MS-011, Variation AB)
Pinout
Manufacturer:
Western Design Center
Part number:
W65C51N6TPG-14
PDIP-28W (JEDEC MS-011, Variation AB)
package diagram
LQFP-32
(JEDEC MS-026-BBA)
Pinout
Manufacturer:
Western Design Center
Part number:
W65C51N6TQG-14
LQFP-32 (JEDEC MS-026-BBA)
package diagram
