Name:MCS6505
Short description:8 bit microprocessor
Symbol:
Pinout: Default Style: GOST

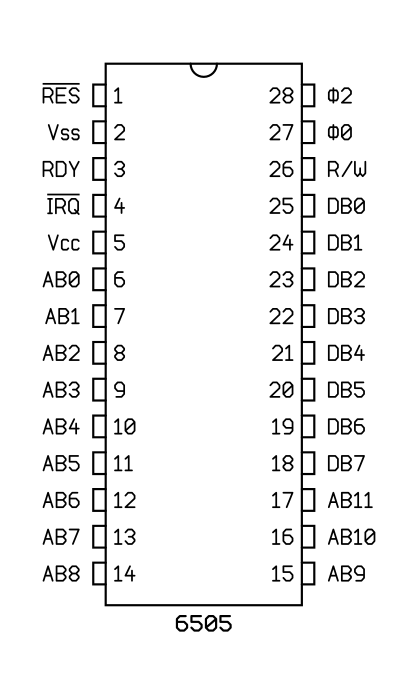

PDIP-28W (JEDEC MS-011, Variation AB) [Pinout]

VendorPart number / Specifications
MOS TechnologyMCS6505
MOS TechnologyMCS6505A
