Category:
Name:MCS6504
Short description:8 bit microprocessor
Symbol:

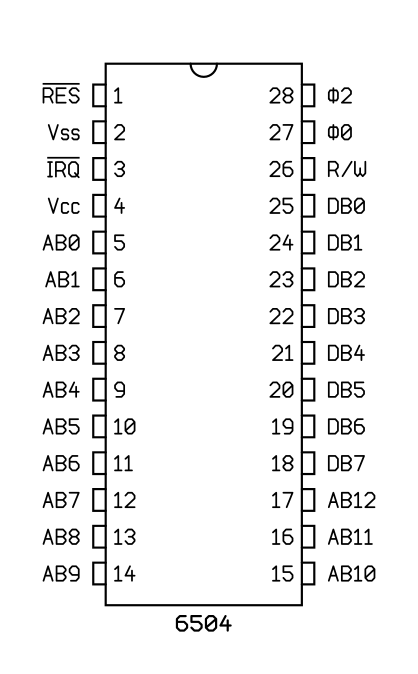

Pinout: Default Style: GOST

PDIP-28W (JEDEC MS-011, Variation AB) [Pinout]

VendorPart number / Specifications
MOS TechnologyMCS6504
MOS TechnologyMCS6504A
