Category:
Name:ATF16V8B
Short description:High-performance CMOS EELPD
Symbol:

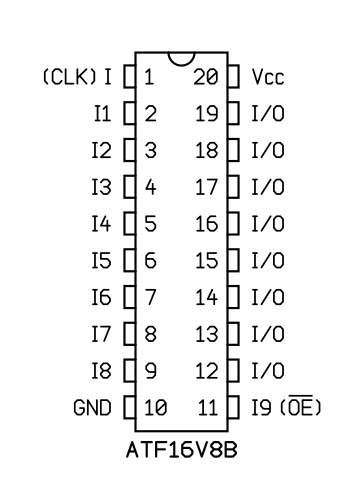

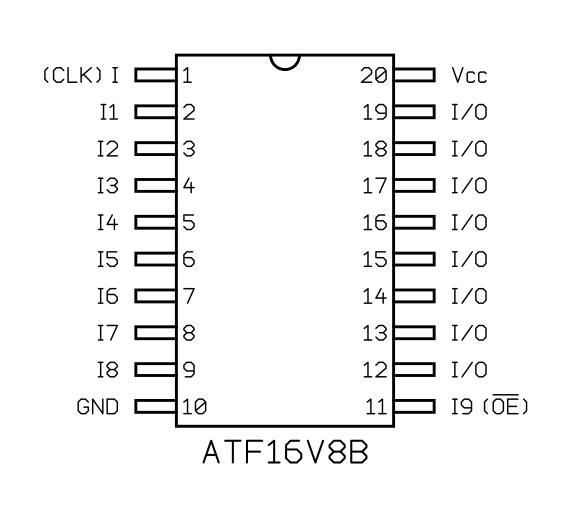

Pinout: Default Style: GOST

PDIP-20 (JEDEC MS-001, Variation AD) [Pinout]

VendorPart number / Specifications
AtmelATF16V8B-15PU
AtmelATF16V8BQL-15PU

SOP-20 (JEDEC MS-013, Variation AC)

VendorPart number / Specifications
AtmelATF16V8B-15SU
AtmelATF16V8BQL-15SU

TSSOP-20 (JEDEC MO-153)

VendorPart number / Specifications
AtmelATF16V8B-15XU
AtmelATF16V8BQL-15XU
