AT28C64B
5V 64Kbit (8Kbit x 8) Parallel EEPROM

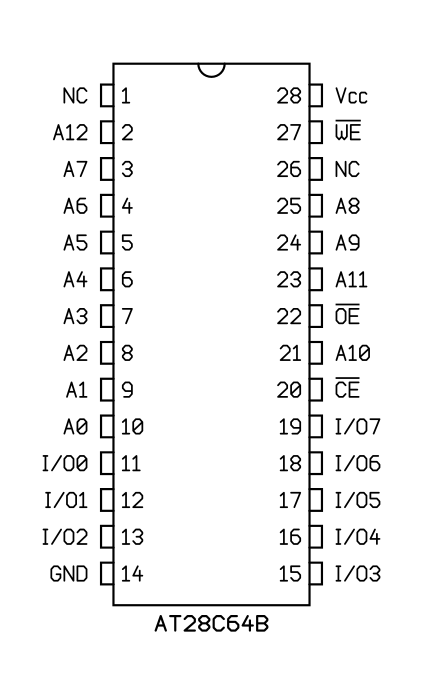

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-28
(JEDEC MS-011, Variation AB)
Pinout
Manufacturer:
Microchip
Part number:
AT28C64B‑15PU
PDIP-28W (JEDEC MS-011, Variation AB)
package diagram
